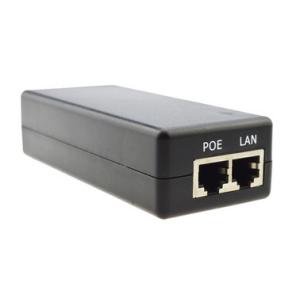

DC 56V Gigabit POE standard IEEE802.3at poe injector with RJ45 for security camera system

Introduction:

The high power passive 10/100/1000 Base-T PoE Injector can realize synchronous delivery of device network data and power via one Ethernet cable (Cat.5 or better). The output power of per port is up to 33.6W, which can serve as an outlet for a PoE device (powering via RJ45 port).

Features:

1. 10/100M/1000Mbps Data Rates
2. 100-240VAC Universal Input
3. C6 socket 3pin AC input
4. IEEE802.3at Compliant Detection, Disconnect,
5. Overload and Over Voltage Control Function
6. System/user indicator
7. Over Load Shutdown and Short Circuit Protection
8. CE UL FCC Compliant
9. V(+) on pins 4, 5; V(-) on pins 7, 8
10. 2 Years Warranty

Specifications:
