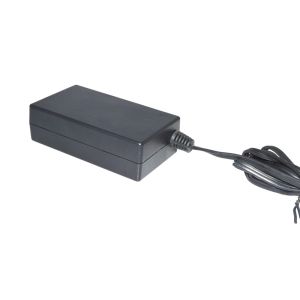

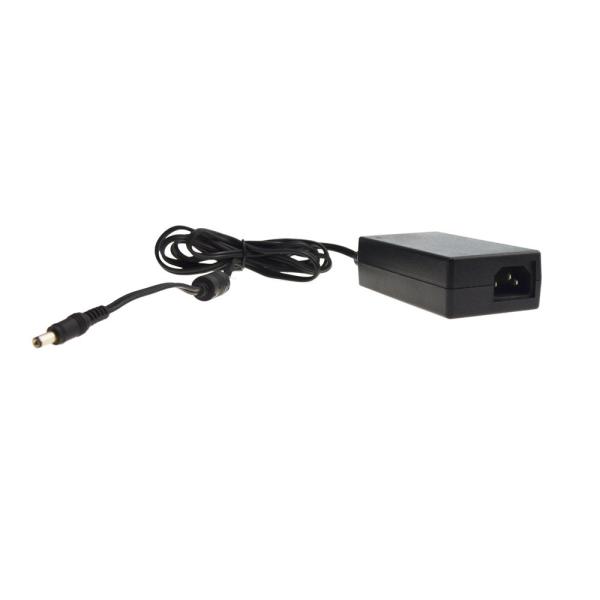

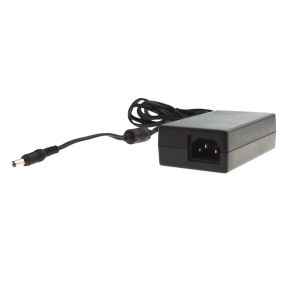

MODEL

SAD-60-5

SAD-60-12

SAD-60-15

SAD-60-24

OUTPUT

DC VOLTAGE

5V

12V

15V

24V

RATED CURRENT

12A

5A

4A

2.5A

CURRENT RANGE

0 ~ 12A

0-5A

0-4A

0-2.5A

RATED POWER

60W

60W

60W

60W

RIPPLE & NOISE (max.) Note.2

150mVp-p

150mVp-p

180mVp-p

180mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

11.8 ~ 12.2V

12.5 ~ 15.5V

23.8 ~ 24.2V

VOLTAGE TOLERANCE Note.3

±2.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1.0%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

200ms 100ms

HOLD UP TIME (Typ.)

30ms

VOLTAGE RANGE

100 ~ 264VAC 120 ~ 370VDC

FREQUENCY RANGE

47~63Hz

INPUT

EFFICIENCY(Typ.)

73%

76%

77%

79%

AC CURRENT (Typ.)

2A/115VAC 1A/230VAC

INRUSH CURRENT (Typ.)

COLD START 20A/115VAC,40A/230VAC

LEAKAGE CURRENT

<0.5mA/ 240VAC

PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.

-10 ~ +60°C (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85°C, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C (0 ~ 50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY &

EMC

(Note 4)

SAFETY STANDARDS

UL1012, UL60950-1, TUV EN60950-1, CCC GB4943 approved
