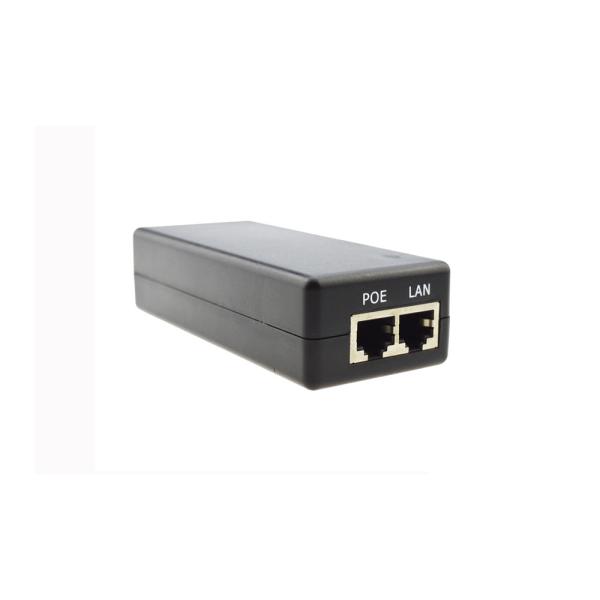

10/100M and Gigabit PoE Injector
Description:
PoE Injector is also called as Power over Ethernet mid-span
devices. Single port PoE injector, that is PoE power supply module, is the most flexible and the hottest
products among the power supply devices. There are 2x RJ45 ports for these single-port PoE
injectors, one of which is the Ethernet in Port for the uplink upper switches or other upper network devices,
and another is PoE Out port used as the port for network data and power output. These single-port
PoE injectors supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair
1/2(+), 3/6(-)method.
These single-port PoE injectors provide a simple, economical,
high-performance and intelligent way for Ethernet PoE power supply and data communication. It’s
ideal choice for those who need the superior quality project because of its simple use, easy to
install, superior performance and costeffective.
They can supply power to HD webcam through Cat5 Ethernet cable, in
order that make it more flexible for the places difficult to connect to power supply,
and provide with more efficient solutions.
1ch POE injector/switch Features:
Supply power to 5Cat Ethernet HD network surveillance cameras
PA101: 2x 10/100/1000M RJ45 ports;
PA101 : IEEE802.3af standard, each port power is 15.4W;
Coming with the Ethernet network port and PoE output port, and the
power input port with
lighting-proof function (meet the secondary lightning protection)
Can supply power with the spare line pair(4/5 (+), 7/8 (-) method
or the data line pair 1/2(+),
3/6(-)method
No fan, natural heat dissipation, small, quiet design, suitable for
desktop or wall
Specification:
Product Name | Single Port PoE Injector (1000M/ 15.4W) |
Product Model | JKW-10015 |
Port Description | 2x copper cable RJ45 ports |
PoE Power Supply | end-span : 1/2,3/6 data line pair(default); mid-span:4/5,7/8 spare line pair (can be customized) |
Network Medium | 10BASE-T: 3,4,5Cat UTP (≤100 meters) |
100BASE-TX: 5Cat and more UTP (≤100 meters) |
1000BASE-TX: 5Cat and more UTP (≤100 meters) |
Thermal Protection | >100°C |
Performance | PoE output voltage: 48V |
10/1000Mbps working rate |
Network port protection:meet with IEC61000-4-2(ESD) |
MTBF: 190,000 hours(about 21 years) |
Protocols and Standards | IEEE 802.3i 10BASET |
IEEE 802.3u 100BASETX |
IEEE 802.3x Flow Control |
IEEE 802.1af DTE Power via MDI |
IEEE 802.3af |
LEDs Indicator | PoE working status |
Power | Total power: 16W(IEEE802.3af)/30W( IEEE802.3at) |
PoE port power: 15.4W(IEEE802.3af) |
AC input voltage: 90~264V |
Dimensions/Weight | 150x56x45(mm), 0.2Kg |
Working Environment | Operating Temperature: 0°~ 55°C , Storage Temperature: -20°~ 75°C |
Working Humidity: 10%~90%, non-condensing Storage Humidity: 10%~95%,non-condensing |
Warranty | 1 year warranty(2 yeas warranty for power adapter) |
