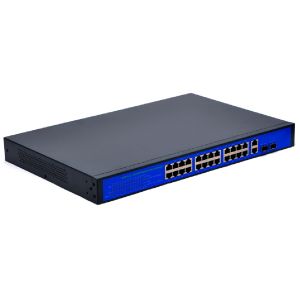

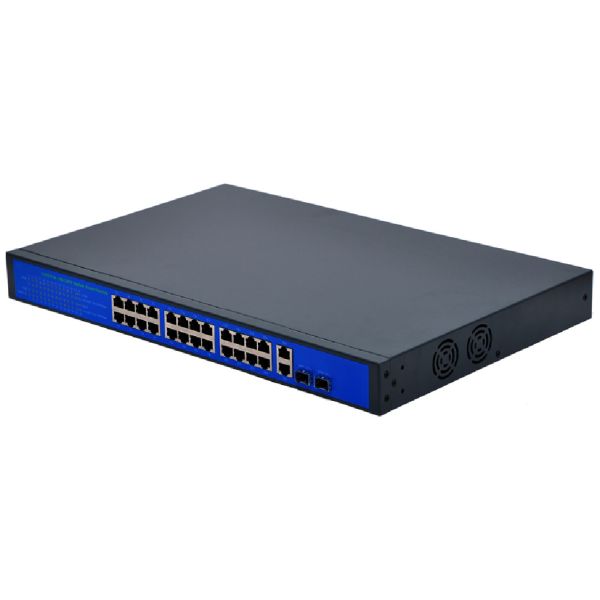

CCTV Camera/Wireless Networking Equipment ethernet optic fiber
switch 24-port POE switch
Overview
The 24-Port smart PoE Switch, with 16 100Mbit RJ45 ports,2 Gigabit
Copper/SFP Combo uplink Port, model JKW024SF, reduces equipment and
installation costs by delivering data and power over existing
Ethernet cables to Power over Ethernet (PoE) enabled devices such
as Access Points and IP Cameras.
Boost office efficiency and reduce network congestion with a total
switching capacity of 7.2Gbps. LED indicators display device status
for easy power management and troubleshooting. An internal power
supply reduces clutter and delivers 15.4 Watts to each PoE port. A
convenient on/off button is located on the back of the switch.
Supports 24 ports of 802.3at/af-compliant Power over Ethernet with
a total power supply of 250W
24 Port 10/100mbps Poe Switch+2 SFP Gigabit Combo
To fulfill the demand of sufficient PoE power for network
applications with 10/100Mbps wire speed transmission, ONV
introduces a new member in the IEEE802.3af PoE Fast Ethernet Switch
family – POE31024P, the 24-Port 10/100Mbps IEEE802.3af Power over
Ethernet Switch with 400 Watts PoE budget. The 24 Fast Ethernet
ports integrated with IEEE802.3af PoE injector function are able to
drive at least 16 x IEEE 802.3af 15.4 Watts Class 3 compliant
powered devices.
The POE31024P also provides a simple, cost-effective, and
non-blocking wire-speed performance with 19-inch metal shape for
deployment in compact housing, SOHO office or department network
application.
Product Features
IEEE 802.3af power on up to 24 ports
Supply power to wireless access points and surveillance cameras
over Cat-5 cabling
24 10/100 Mbps Ports with AutoUplink™
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 440W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and
backpressure for Half-duplex Mode
8K entry MAC address table of the PoE Switch POE31024PF with
auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply
Target Industries
HD monitor transmission and power supply
Wireless AP layout transmission and power supply
Network telephone transmission , intelligent house and home system
Intelligent transportation supervisory system(ITS)
High-speed Way supervisory/Tele-Communication System
Security protection system, TV medical treatment
Long-distance Muti-media Schooling, Campus monitoring
Long-distance broadcast television transmission system
High-building Security Protection, Military Tele-Com projects
Order Information:
Product: JKW024SF
Type: 24-PORT 10/100 SWITCH WITH 24-PORT POE, IEEE 802.3af, PoE Power
Output: 15.4Watts,PoE Budget: 440W
Power Pin Assignment: Data provided over pairs over 1/2 and 3/6 ,Power over spare pairs
4/5(+) and 7/8 (-)
